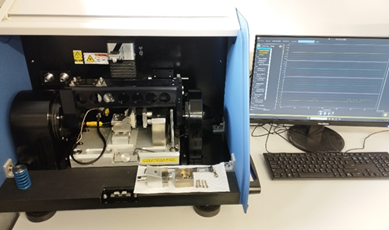

Tribometer Rtec-HFRR High frequency fretting rig
High frequency – small displacement reciprocating sliding (fretting) wear tester
- Contact: ball on flat, dry/lubricated
- Type of motion: reciprocating sliding - fretting
- Vertical load: 0 N to 350 N
- Horizontal load (Friction force): 0 N to 150 N
- Frequency: 0 Hz to 200 Hz
- Stroke: 10 µm to 2.8 mm
- Temperature: room to 200 °C
- Atmosphere: air
- Standard tests: D6079, ASTMD7688, CEC F-06-A-96, ISO 12156-1, IP450, BS-EC590 and more
